Introduction£º
Model GA014SF soft winding machine is specially designed for winding copsincluding cotton,wool,artificial fiber and their blends into cone or cheese package for high temperature & high pressure dyeing processing.
|
 |
| Technical parameter£º |
| Type |
Grooved drum type |
| Tranversing gauge(mm) |
2.2¡¢3.2 |
| tranversing time(t/min) |
14.2 |
| Number of drum |
60¡¢80¡¢100¡¢120£¨standard.100s£© |
| Drum gauge(mm) |
254 |
| Yam traverse(mm) |
147 |
| Winding speed (m/min) |
350¡¢400 |
| Size of full package(mm) |
Base¦Õ 170¡Á149 |
| Drum |
Diameter ¦Õ82mm 2 2/1turns |
| Cone density(g/cm3) |
0.30-0.40 |
| End-breakage automatic stop motion |
individual spindle control |
| Tension loose device |
By change the tension weight,as cone diameter increased,the tension decrease to improve its evenness of the density. |
| Ribbon breaking |
During running,make the motor tum on and off by means of Non-touching ribbon breaker switch at 32 times per minute |
| Drive:main motor |
2pcs.1.8kw1440r/min |
| Pilot motor |
1pcs.0.37kw960r/min |
|
|

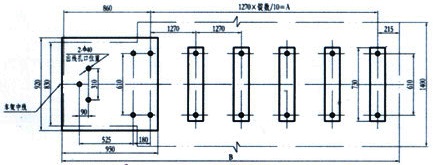

Overall length:
Spindles |
Total length |
40 |
6155mm |
60 |
8695mm |
80 |
11235mm |
100 |
13775mm |
120 |
16315mm |
|
|
