  Cotton yarn dyeing series  >RZT Series High Efficiency Yarn Package Hydroextractor

Introduction£º

¡ñThe high rotation speed (1530rpm)ensures a very low and uniformly distributed residual moisture content in the yarn packages(e.g. down to 45% on some cotton yarns) which ensures even moisture regain rate for yarn before drying, thus reducing the overall drying cost and improving the final product quality.
¡ñThe rotation speed is adjusted by inverter, which ensures smooth speed increase / decrease. The control system by PLC ensures the fully automatic operation of the machine until the end of each hydroextraction cycle, when the yarn has reached the designed final moisture content.

¡ñThe control system by PLC ensures the fully automatic operation of the machine until the end of each hydroextraction cycle.

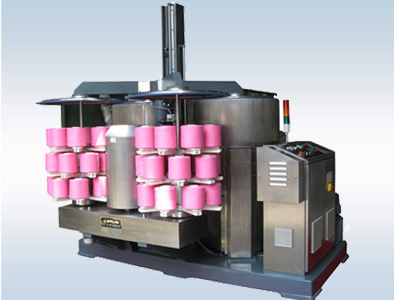

RZT90

¡ñThe unique anti-vibration design ensures smooth rotation of the baskets without unbalancing and the overall stable operation of the machine.

¡ñHydraulic lifting / lowering system of the package holders equipped with oil pump.
¡ñ4 rotating package holders with individual arms.
¡ñ2 suspended-type extracting baskets in stainless steel with individual driving motors and balancing devices.

Technical parameter(hydro extracting time for different yarn£º

Yarn type

Extraction time

Residual moisture

Synthetics

3min

8-12%

Wool blends

4min

15-25%

Wool /cotton blends

4min

25-30%

Cotton

5min

45-50%

Silk

5min

35-40%

viscose

5min

60-70%

Specification£º

Model
Spec.

RZT-60

RZT-90

Average capacity

320packages/h

480packages/h

Installed power

16kw

16kw

Rotation speed

1530rpm

1530rpm

Net weight

2500kg

2850kg

Dimensions

2600X2210X2240mm

2600X2210X2620mm

Note: Specifications of the above machines are Only for reference,The comapny reserves the right of amendment.
Catalog Download£º
(Click or Right Key -> target save to(A)... Download) )

RZT.PDF
