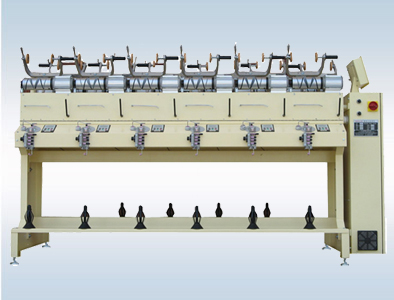

Cotton yarn dyeing series >High Speed Winding Machine

Introduction： ●The high speed winding machine incl. two types, one is HS101CH Model, This is for Hard winding; another is HS101CS Model, for Loose winding. ●Every spindle is driven by a motor (90w)individually which is powered? by an inverter. ●Max. winding speed: 1000m/min. . ●Electronic yambreak auto-stop function.

Technical parameters：

Spindles Number	24s, 36s,48s,60s, 72s,84s, 96s, 108s(each unit 12s)
Electrical supply frequency	50Hz 90w/spindle(individual motor)
Max. winding speed	1000m/min
Dimension(LWH)mm(incl. the cleaner) (72s)	13724×1090×2300mm
Air splicer and cleaner	Optional
