Products HomeProducts  >Terry Towel machines >Terry Towel Rapier Loom

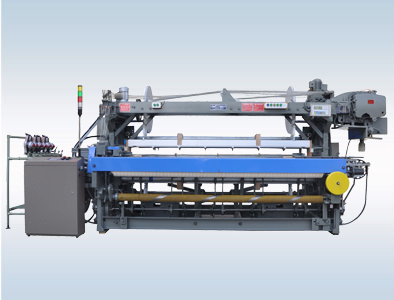

  Terry Towel machines >Terry Towel Rapier Loom

Introduction:

●Adopt the digital control system to freely set the terry height, pick dencity and yarn tension and so on.
●Electronic let off and take up, by servo motor control, running smoothly.
●Large LCD Screen, Pattern file transfer by USB Connector, transfer easy.. .

●Auto pick find function.

●Adopt full closed electronic Dobby, 24 levels. can meet with 18 pcs heddle frames.

● Max. 6-8 colors weft selector, large capacity weft accumulator .



Technical parameters:
Reed Width(mm) 2000, 2300,2600,2800,3000.
Max. Rotation speed 250RPM
Upper beam diameter(mm) 800
Down beam diameter(mm) 600
Power(kw) 1.5-2.5
Dimension 4700x2000x2200mm



Catalog Download:
(Click or Right Key -> target save to(A)... Download) )

LMM.PDF
