Products Home >  Products  >Terry Towel machines >Towel hydro extractor

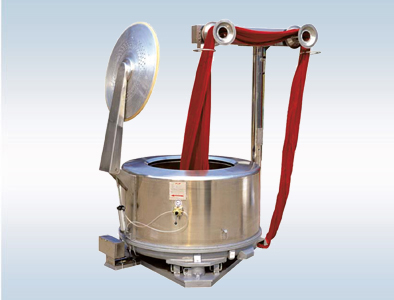

  Terry Towel machines >Hydro extractor

Technical features :

1. High quality stainless steel inner and outer basket for long service time.
2.Large capacity, high hydro-extraction efficiency, but low energy consumption.
3.Advanced inverter control system for timing, automatic braking, varied revolving speed as requirement, etc. for excellent perfor- mance.
4.Pneumatic lid device for safe operation .
5.Fully controlled by electrical apparatus without machine brakes thus reduce echanical maintenance greatly.
6.Super silence and super balance for excellent working environ- ment.
7.Seperate stainless steel fabric loading and unloading device for more convenient peration and no damage or pollution to the fabric.

8.Newest automatic control processor with Chinese display series for customers hoice. system, Greatly improve the work efficiency. Low bath ratio for dyeing, reduce water consumption and energy saving. Advanced program controller can improve the efficiency of dyeing and dyeing reproducibility.

Technical parameters :

Model UME-HD-800 UME-HD-1200 UME-HD-1500 UME-HD-H1500 UME-HD-1800
Inner Basket(mm) ∮800×H500 ∮1200×H600 ∮1500×H600 ∮1500×H700 ∮1800×H820
Capacity(kg) 150 380 600 650 1200
Power(kw) 2.2 5.5 10 10 15
Rotation Speed(rpm) ≤750 ≤750 ≤750 ≤750 ≤600
Dimensions
(mm) 		1450×1150 ×1080 1800×1600 ×1220 2150×1800 ×1300 2150×1800 ×1400 2550×2200 ×1530




Catalog Download：
(Click or Right Key -> target save to(A)... Download) )

HEM.PDF
