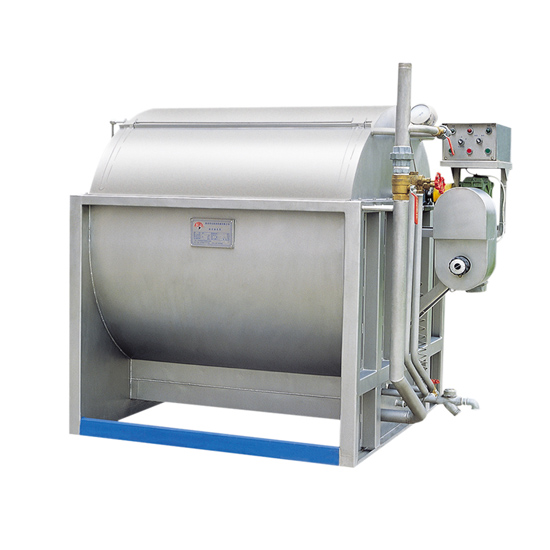

DX Series piece dyeing machine

Characteristic:

It is the suitable for dealing with coloration of wool,terylene,nylon,cotton,man-made silk,cashmere resembling and blending. It moves and operates on stabilization and on the safe side,no noise,all the work are wear well.
      It quips stepless gear change mechanism,the blade operates according to the request fo different fabric,loading and craftwork to make the proper adjust.
     There is direct and indirect heating pipes in the bottom of vat,it could heat,heat preservation and temperature falling,it operates convenient and safe.
      It adopts the accurate controller which is rotated,it also self-controls the blade operating with positve and negative,it makes the fabric equality run and makes sure the fabric regularity.

¡ôTechnigue data of accessories
      The highest work temperature:98¡æ.
      The rising temperature speed:about 5¡æ/minute.
    (according to the steamy pressure 6kg/cm2)
      The falling temperature falling speed:about 2¡æ/minute.
    (according to the refrigerant pressure 3kg/cm2)



Specification:



Model
Maximum loading kg£©
Speed
£¨r/min£©

Motor(kw)

Dimensions(mm)
Weight(kg)
DX-20
9
5-20
0.55
1360¡Á1050¡Á1200
200
DX-30
13.5
5-20
0.55
1650¡Á1100¡Á1500
200
DX-50
23
5-20
0.55
1650¡Á1200¡Á1610
270
DX-70
32
5-20
0.75
1950¡Á1280¡Á1500
385
DX-100
45
5-20
0.75
2070¡Á1560¡Á1670
430
DX-150
70
5-20
1.1
2440¡Á1660¡Á1800
560
DX-200
90
5-20
1.5
2750¡Á1850¡Á1900
730
DX-250
113
5-20
1.5
2650¡Á1970¡Á1900
885
DX-300
135
5-20
2.2
3700¡Á1950¡Á1200
960
DX-400
182
6-24
3
3400¡Á2450¡Á2300
1350
DX-500
225
6-24
4
3500¡Á2450¡Á2300
1100
DX-600
270
6-24
4
4100¡Á2200¡Á2300
1720
DX-800
360
6-24
5.5
4650¡Á2500¡Á2450
1850
DX-1000
454
6-24
5.5
5840¡Á2400¡Á2300
2650
